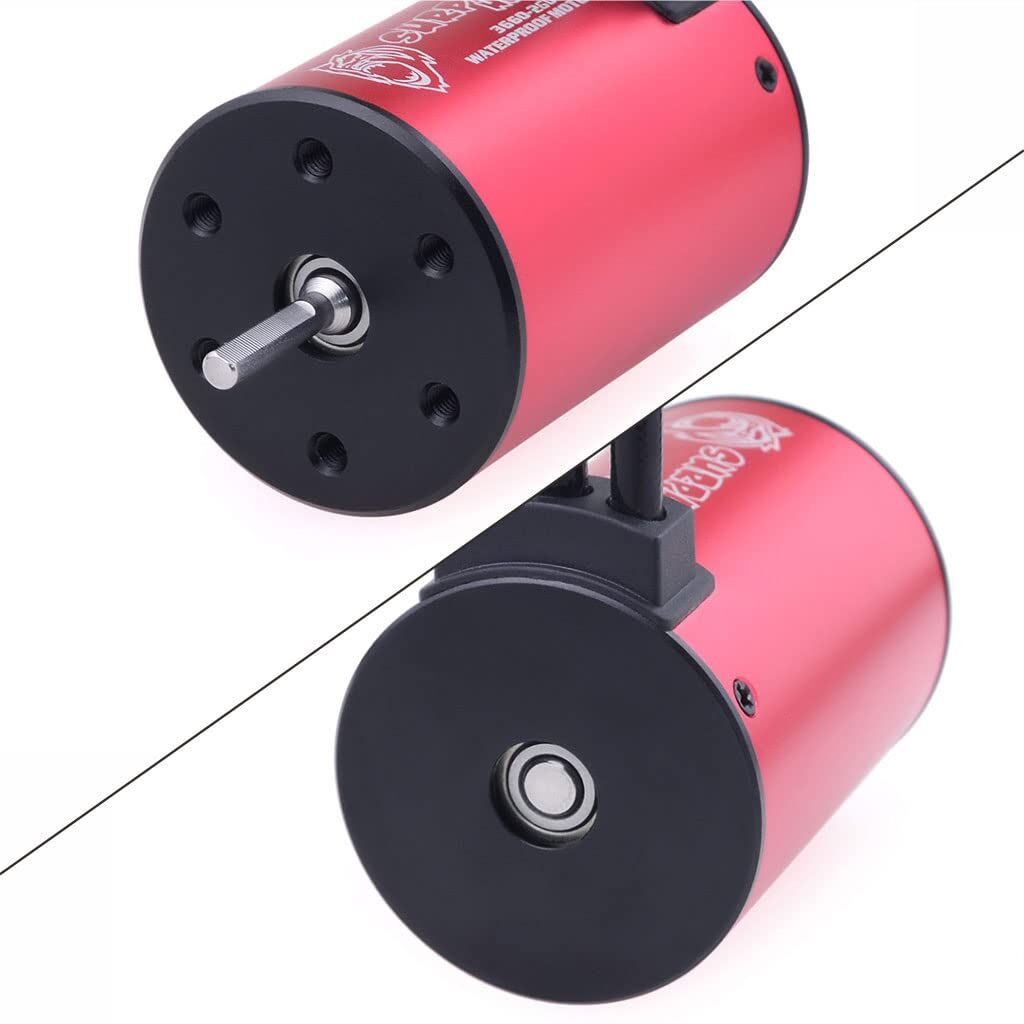

Motor Features:

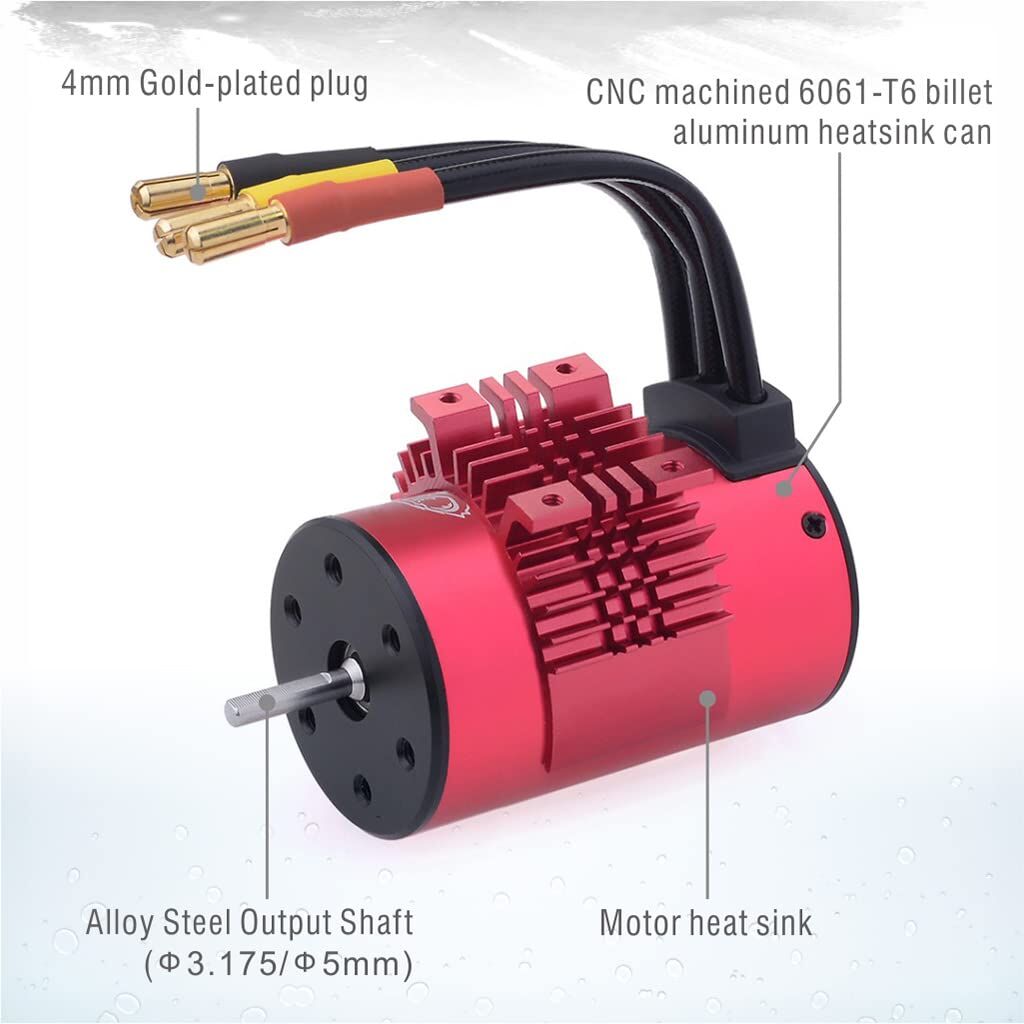

CNC Machined 6061 T6 Billet Aluminum Heatsink Can

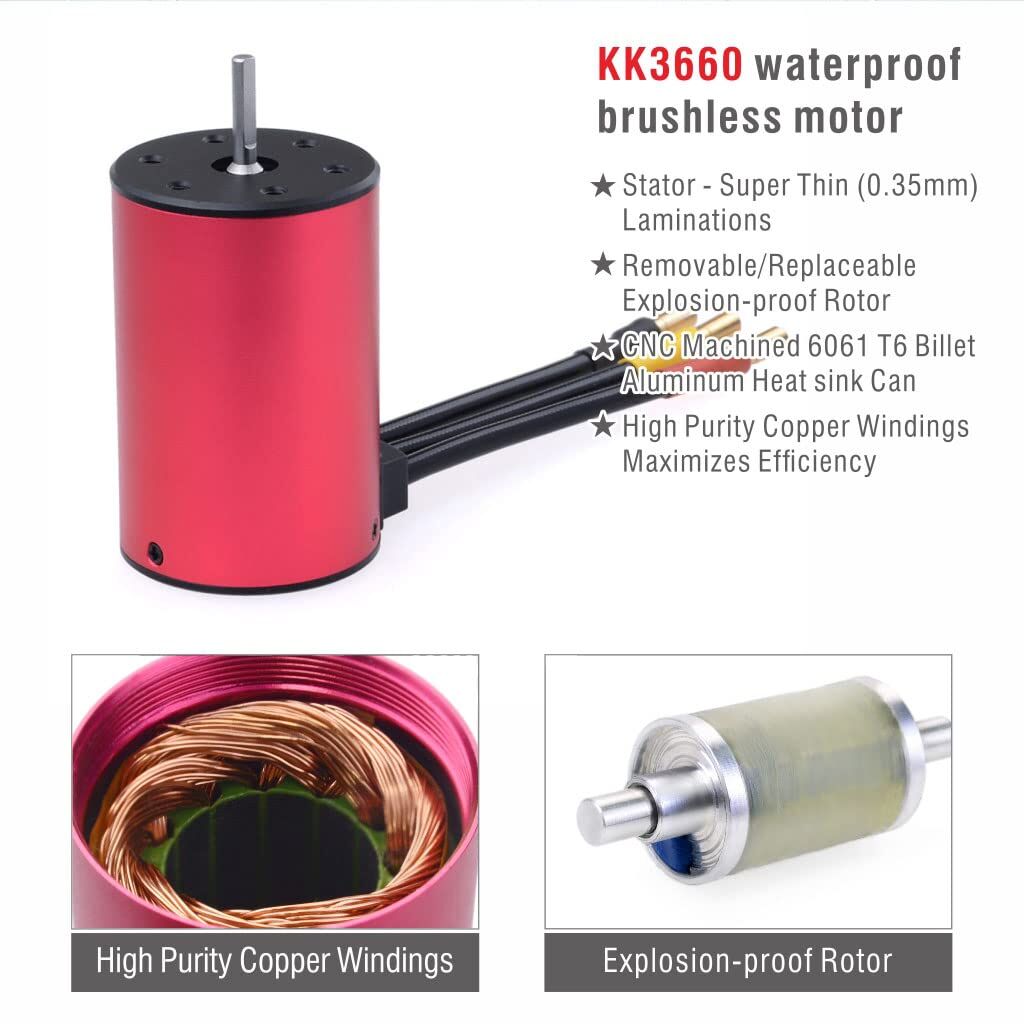

High Purity Copper Windings Maximizes Efficiency; High RPM ABEC5 Oversized Bearings

Universal fit,fits all 1/10th brushless cars-multi-mounting system for M3 screws

Precision balanced rotor,smoothness for best reliability and maximum RPM

Precision Engineered for Maximum Energy Conversion

MOTOR Spec:

KV: 2600

Watts: 1200

Max Voltage: <19V

Max Amps: 63A

Rotor Poles: 4

IO: 1.5A

Resistance: 0.0146

Max RPM: 50K

Shaft: 5mm

Length of extend shaft: 17mm

Connector: 4.0mm gold

N.W: 228g

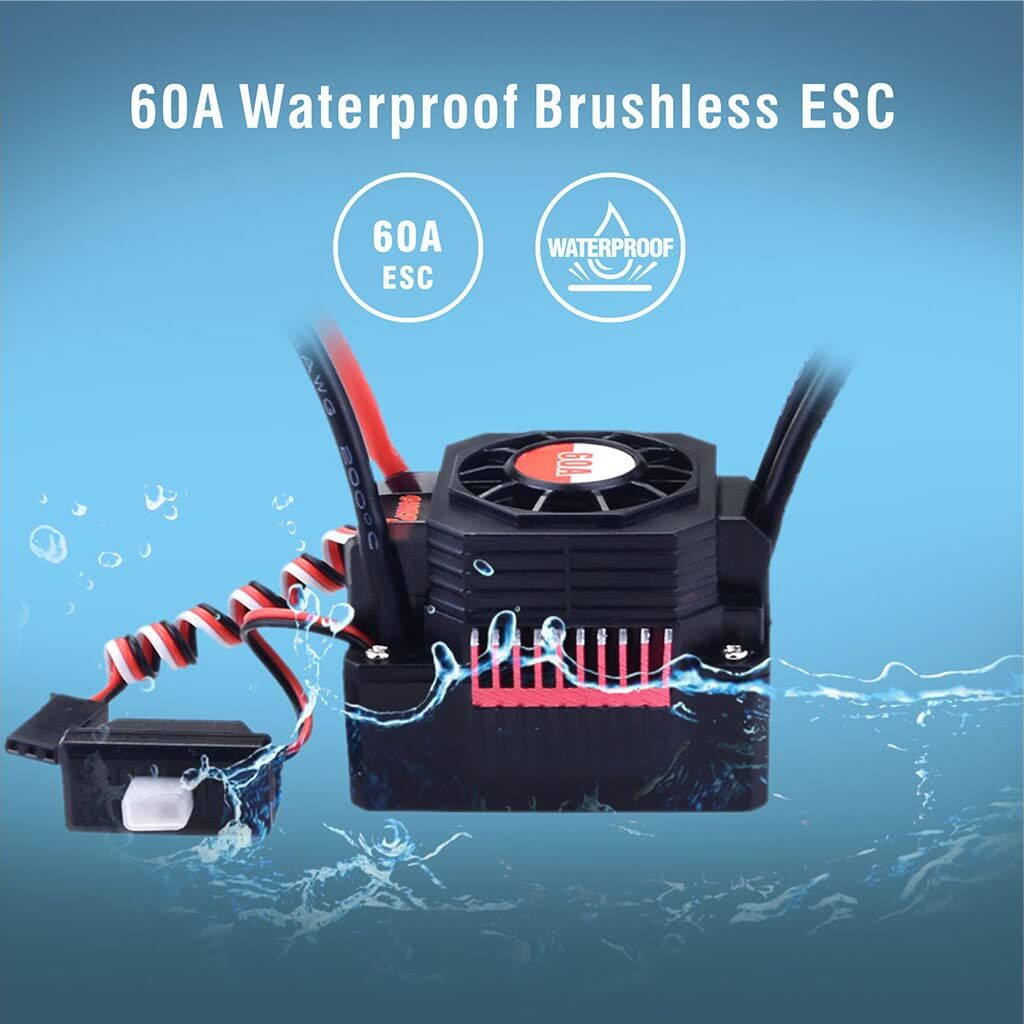

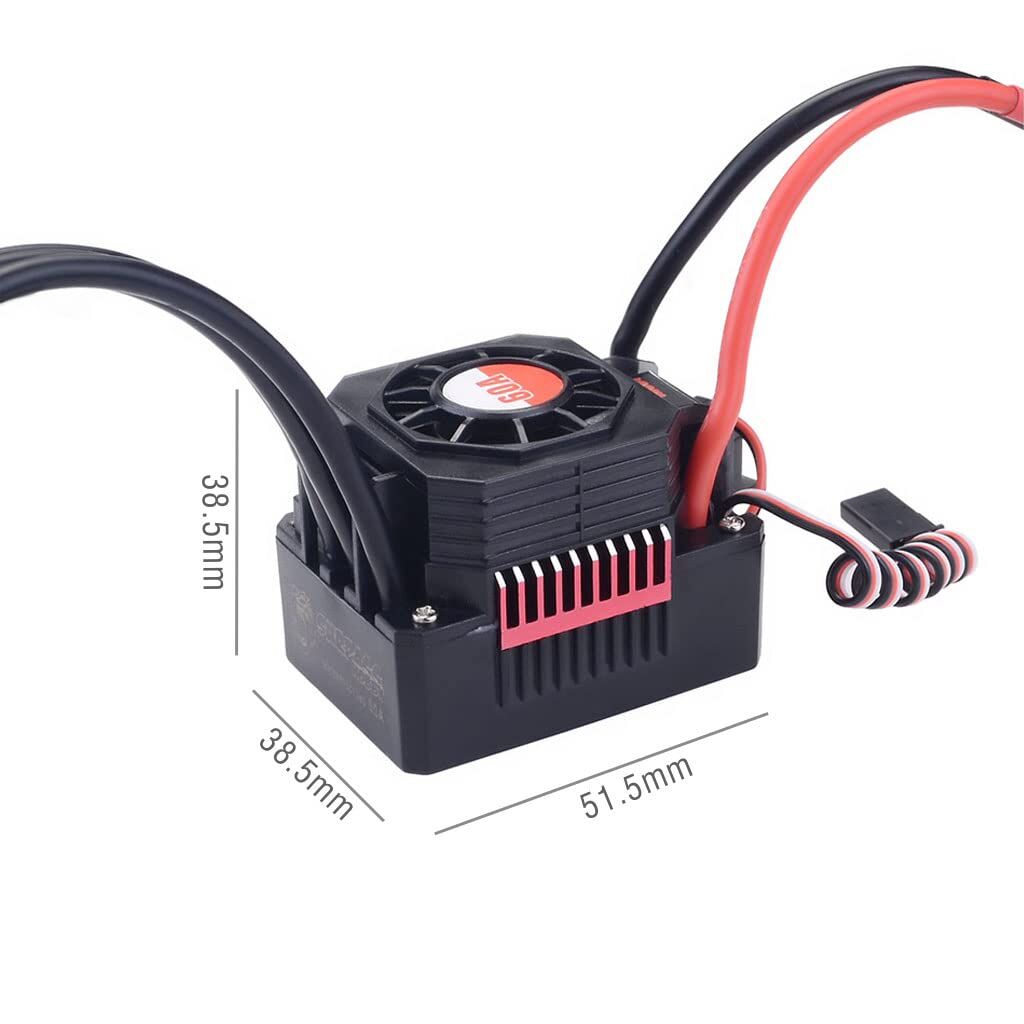

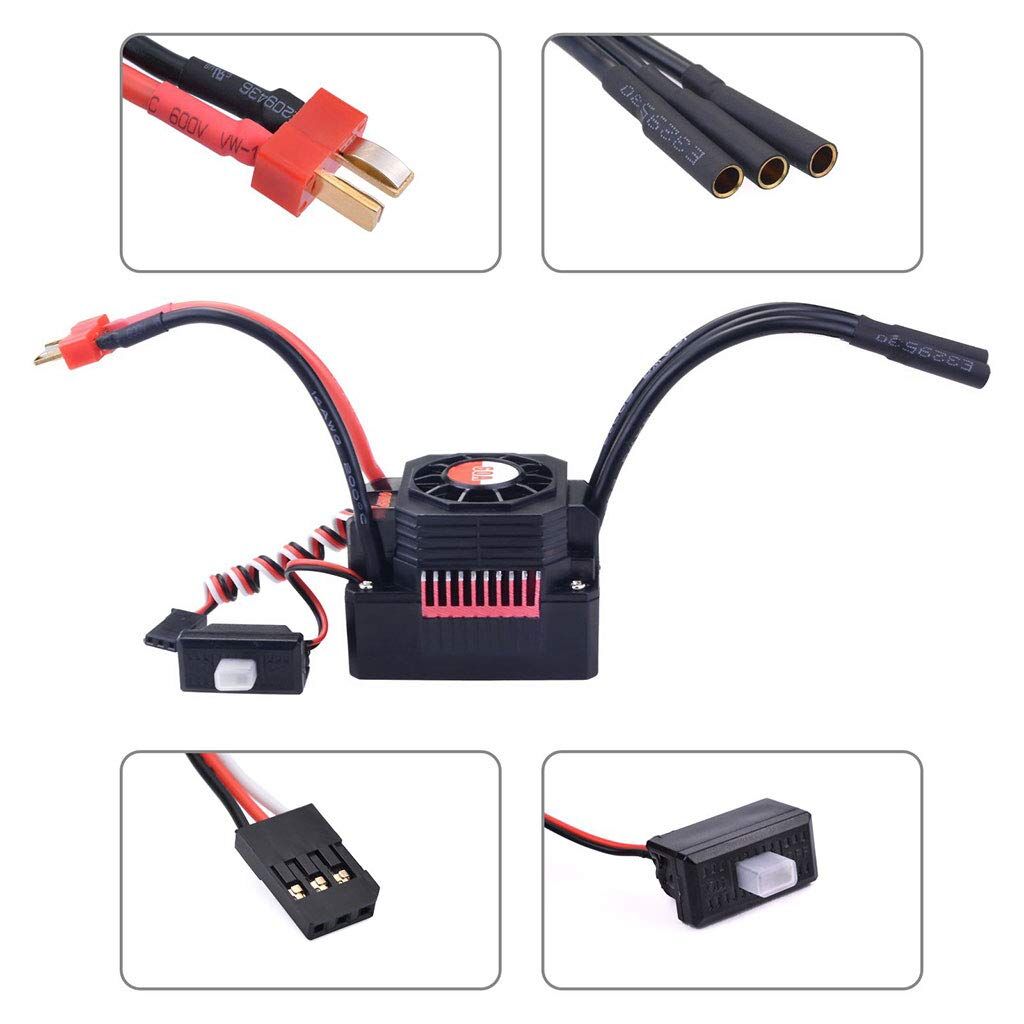

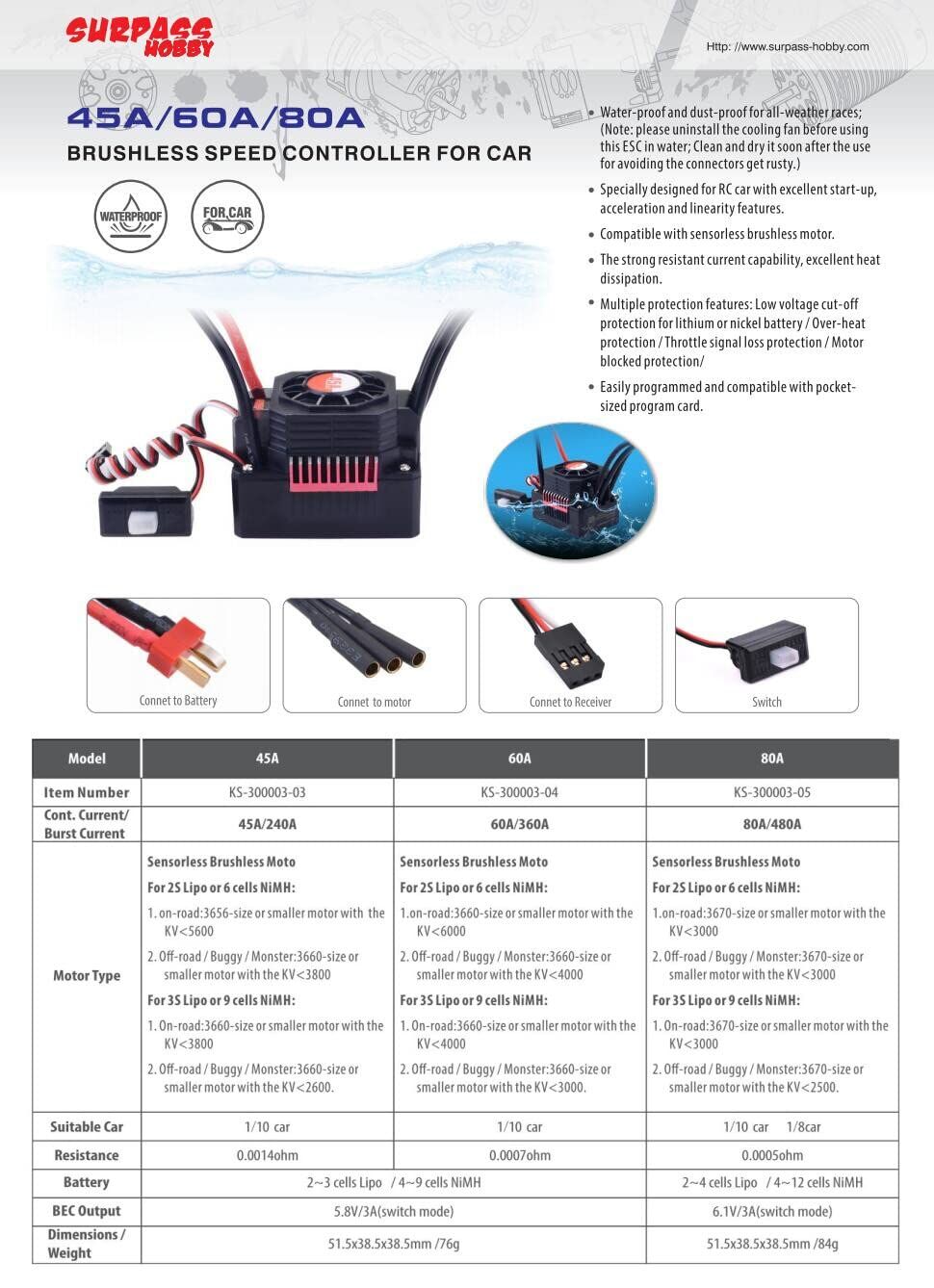

60A ESC:

Con.Current/Burst Current:60A/360A

Motor type:

Sensorless Brushless Moto for 2S Lipo or 6 cells NiMH:

1.on-road:3660-size or smaller motor with the KV<6000

2.Off-road/Buggy/Monster:3660-size or smaller motor with the KV<4000

For 3S Lipo or 9 cells NiMH:

1.On-road:3660-size or smaller motor with the KV<4000

2.Off-road/Buggy/Monster:3660-size or smaller motor with the KV<3000

Suitable Car: 1/10 car

Resistance:0.0007ohm

Battery:2-3 cells Lipo/4-9 cells NiMH

BEC Output:5.8V/3A(switch mode)

Program card Spec:

Low voltadge cut off: 3.1V/2.9V/2.7V/0V

Start mode:Medium/soft/strong

Max brake force: 25%,50%,75%,100%

Max reverse force: 25%,50%,75%,100%

Neutral range: 6%,9%,12%,work state

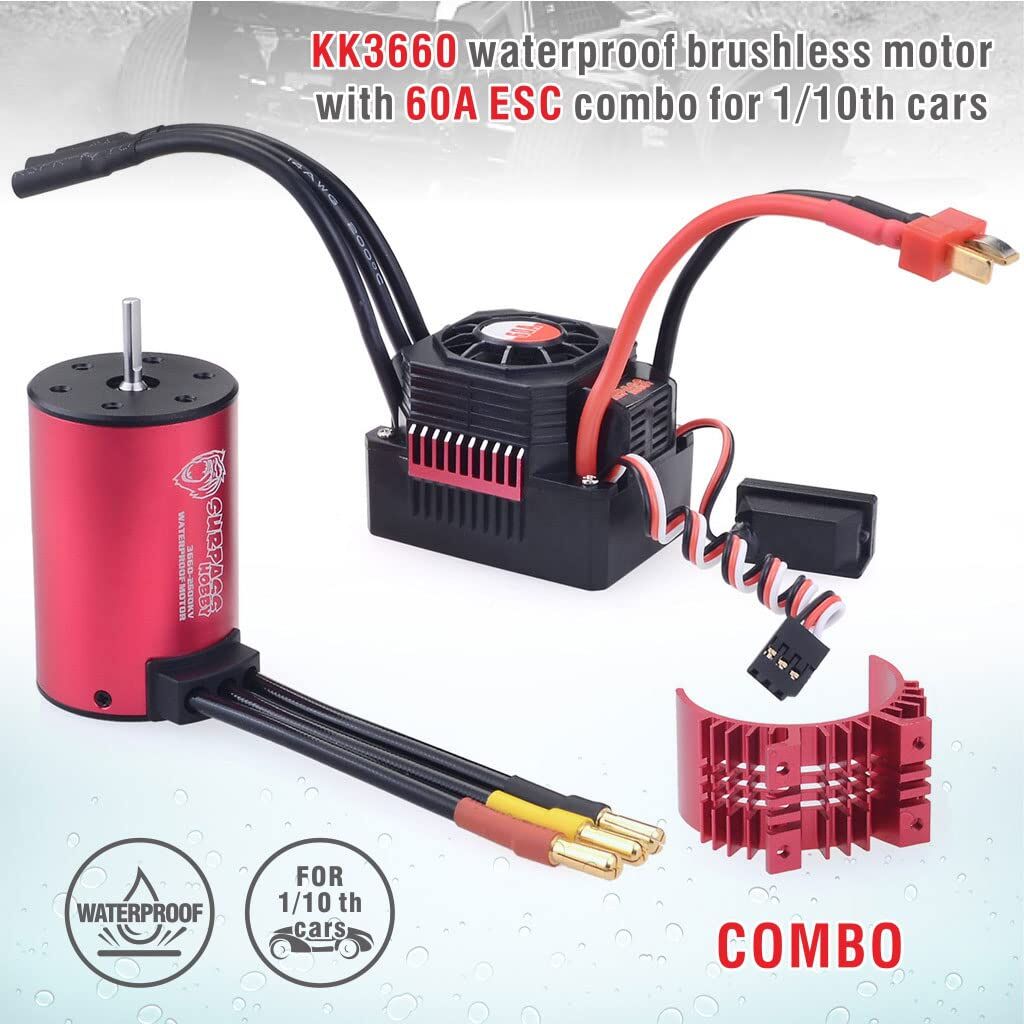

Package Included:

1 x 3660 2600KV Motor

1 x 60A ESC

1 x Heatsink
