Replacement Brushless ESC for the Strada Red series of cars

Can also be used to upgrade the standard Strada when used inconjunction with a Brushless Motor:
#MV22602 - MM - 22BL 3215KV Brushless Motor

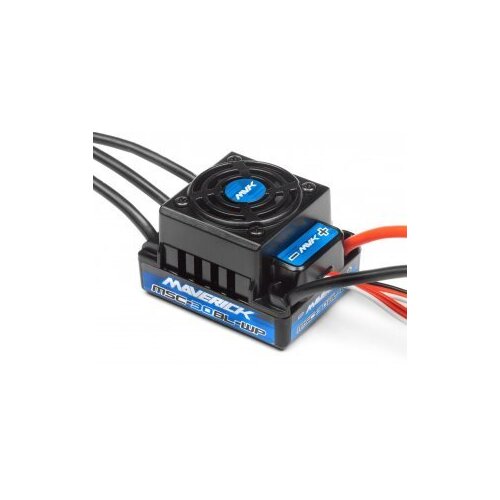

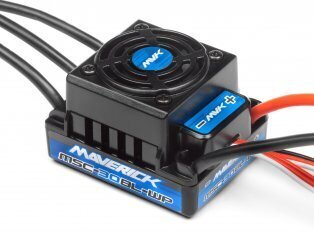

MSC-30BL-WP BRUSHLESS SPEED CONTROLLER
Features

1. Water-resistant* and dust-proof. The ESC has been designed towork in wet conditions.
2. 2-3S Capable (for 3S you must change the standard 5V coolingfan to a 12V cooling fan, or supply the 5V cooling fan from thereceiver 5-6V);
3. Compatible with sensorless brushless motor.
4. 2 running modes (Forward with brake mode,Forward/Backward with brake mode).
5. Proportional ABS brake function with 4 steps of maximum brakeforce adjustment, 8 steps of drag-brake force adjustment.
6. 4 Punch modes from Soft to Veryaggressive to be suitable for different chassis, tires andtracks.
7. Multiple protection features: Low voltage cut-off protectionfor Lipo or NiMH battery / Over-heat protection /Throttle signalloss protection / Motor blocked protection.
8. Easily programmed with the SET button

*Please remove the cooling fan when running the ESC very wetconditions.
*After running the ESC in wet conditions, please clean and dry itto avoid the oxidation to copper connectors

Specification

1. Continuous Current: 45A
2. Burst Current: 220A
3. Resistance: 0.0012 ohm
4. Application: 1/10 scale on-road and off-road
5. Motor Limit:
6. 2S LiPo or 6 cells NiMH - On-road: ?9T, Off-road: ?12T,3650 size motor
7. 3S LiPo or 9 cells NiMH - On-road: ?12T, Off-road: ?18T,3650 size motor
8. Battery: 4-9 Cells NiMH or 2-3S Lipo**
9. Built-in BEC: 6V/2A
10. Program Port: Multiplexed with cooling fan port
11. Motor Type: Sensorless Brushless
12. Dimension: 48.5 x 38 x 32mm
13. Weight (with wires): 90g

**1) For 4-6 cells NiMH or 2S Lipo: You needn't change the 5Vcooling fan on the ESC;
**2) For 7-9 cells NiMH or 3S Lipo: You must change the original 5Vcooling fan to 12V cooling fan, or supply the 5V cooling fan fromthe receiver (5-6V);

Compatible With:

• MV150200 - Quantum MT Flux Standard Part
• MV150201 - Quantum MT Flux Standard Part
• MV150206 - Quantum XT Flux Standard Part
• MV12621 - Maverick Strada XB Brushless Standard Part
• MV12622 - Maverick Strada XT Brushless Standard Part
• MV12623 - Maverick Strada MT Brushless Standard Part
• MV12624 - Maverick Strada TC Brushless Standard Part
• MV12625 - Maverick Strada SC Brushless Standard Part
• MV12626 - Maverick Strada DC Brushless Standard Part
• MV12627 - Maverick Strada RX Brushless Standard Part
• MV12628 - Maverick Strada DT Brushless Standard Part
• MV150100 - Quantum MT Option Part
• MV150101 - Quantum MT Option Part
• MV150105 - Quantum XT Option Part
• MV150106 - Quantum XT Option Part
• MV12613 - Maverick Strada XB Option Part
• MV12614 - Maverick Strada XT Option Part
• MV12615 - Maverick Strada MT Option Part
• MV12616 - Maverick Strada TC Option Part
• MV12617 - Maverick Strada SC Option Part
• MV12618 - Maverick Strada DC Option Part
• MV12619 - Maverick Strada RX Option Part
• MV12620 - Maverick Strada DT Option Part
